OMRON CJ1W-MAD42 (Refurbished & NOT TESTED)

Core Product Identification
• Product Name: A/D D/A UNIT (Analog Input / Analog Output Unit)
• Brand/Manufacturer: OMRON (Omron Manufacturing of the Netherlands B.V.)
• Model Number: CJ1W-MAD42

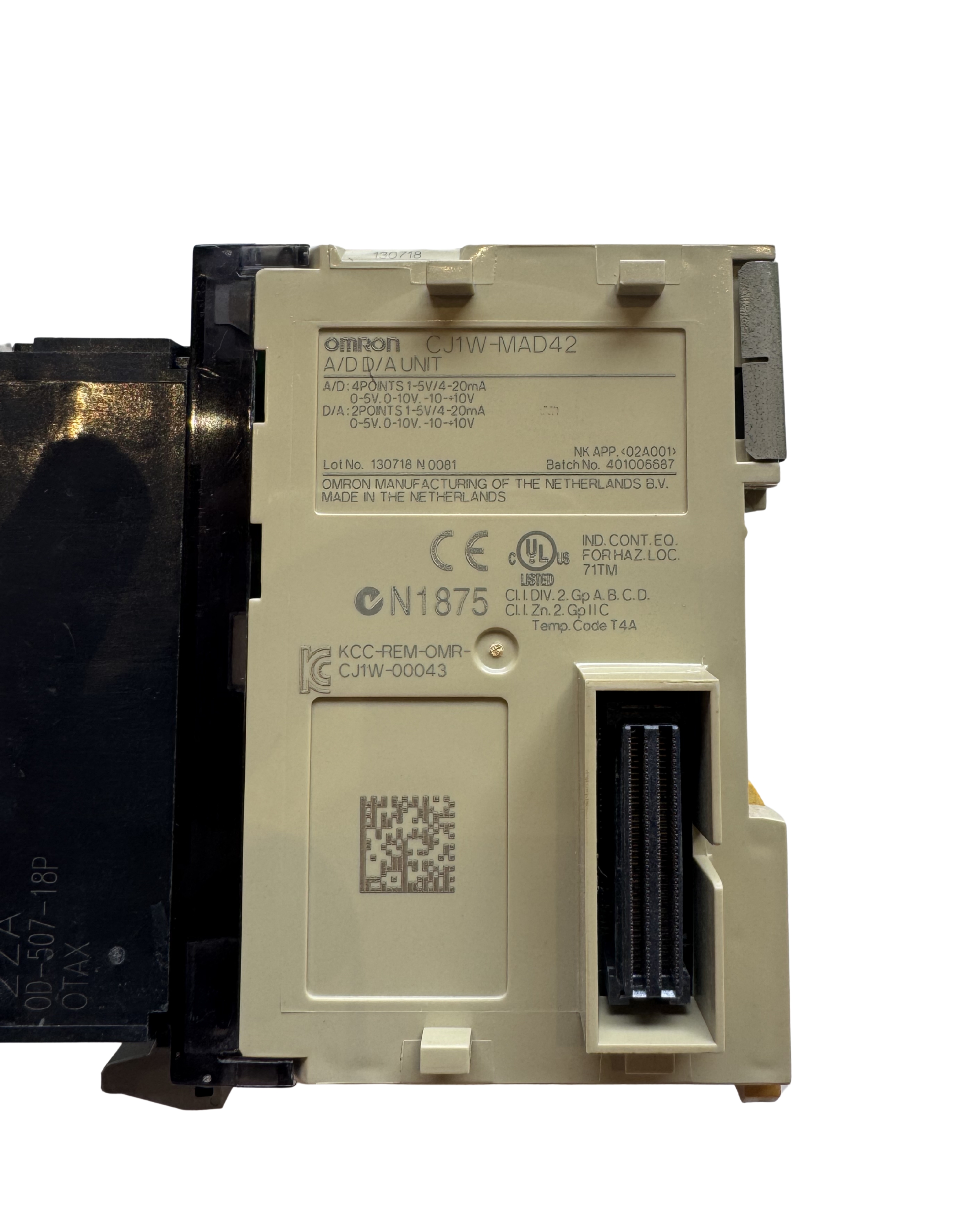

• Part Number: 2ZA OD-507-18P OTAX (faintly printed on the black side component)
________________________________________
Technical Specifications & Ratings
• A/D (Analog Input) Capacity: 4 POINTS
o Signal Ranges: 1-5V / 4-20mA, 0-5V, 0-10V, -10 to +10V
• D/A (Analog Output) Capacity: 2 POINTS
o Signal Ranges: 1-5V / 4-20mA, 0-5V, 0-10V, -10 to +10V
________________________________________
Certifications & Compliance
• CE Mark: Present
• UL Listing: cULus LISTED (IND. CONT. EQ. FOR HAZ. LOC. 71TM)
• Hazardous Location Ratings:
o Cl. I, DIV. 2, Gp A, B, C, D
o Cl. I, Zn. 2, Gp IIC
o Temp. Code T4A
• Regulatory Compliance Mark: N1875
• Korea Certification: KCC-REM-OMR-CJ1W-00043
• Other Markings: NK APP.
• Data Matrix: 2D code present on the lower-left of the beige housing.
