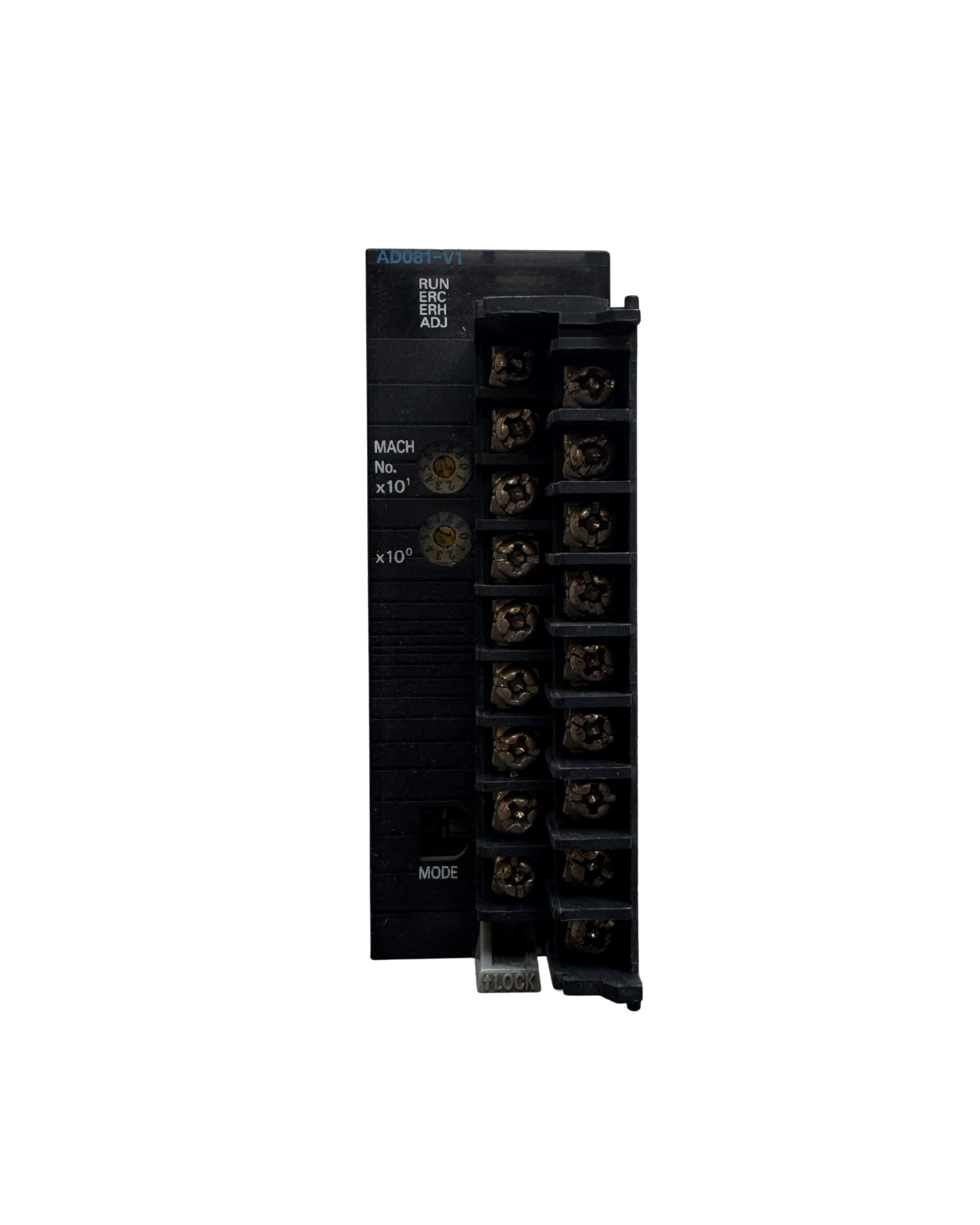

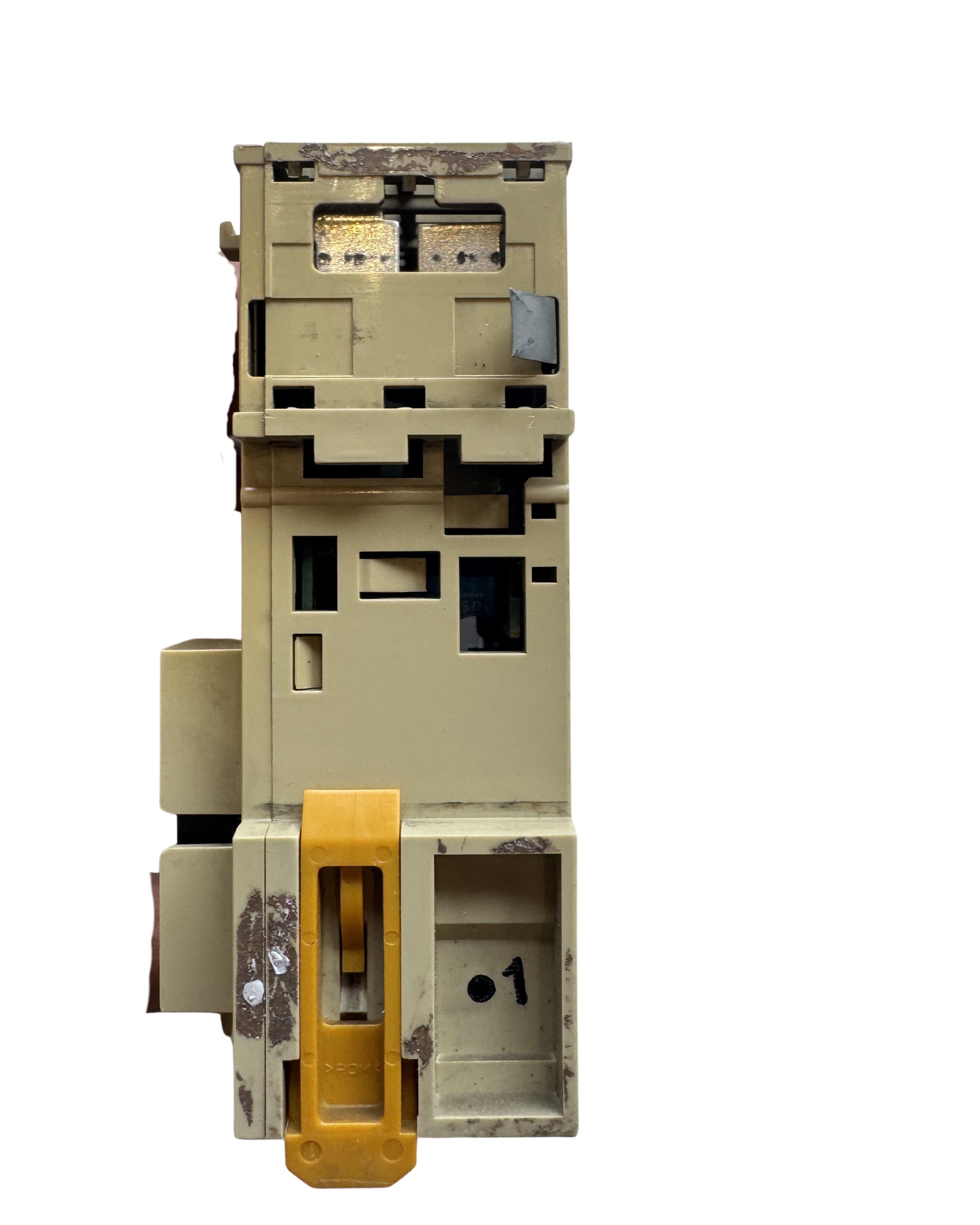

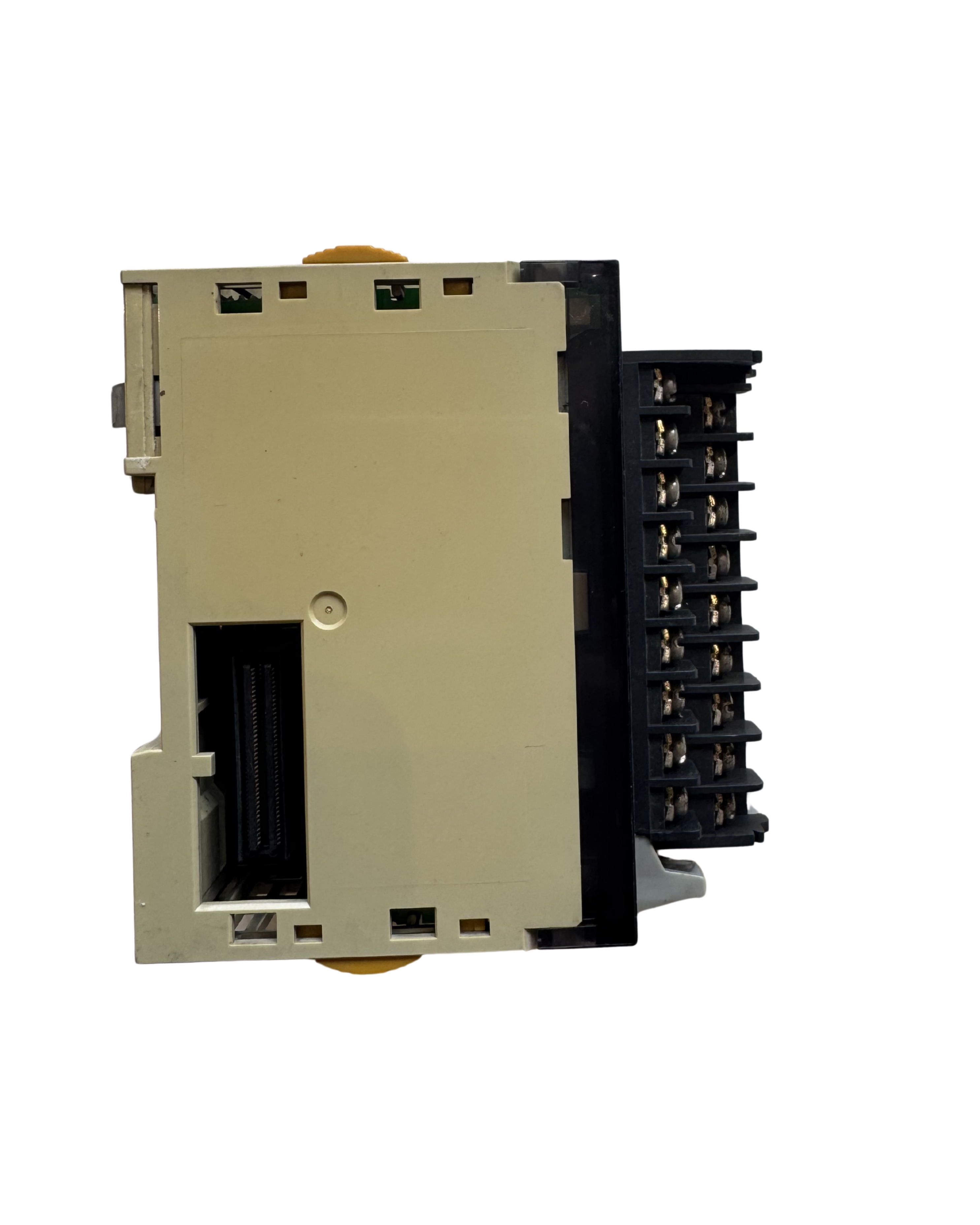

OMRON CJ1W-AD081-V1 (Refurbished & NOT TESTED)

Core Product Identification
• Product Name: A/D UNIT (Analog-to-Digital Unit)
• Brand/Manufacturer: OMRON (Omron Manufacturing of the Netherlands B.V.)
• Model Number: CJ1W-AD081-V1
• Part Number: 0644 OD507-18P (molded/stamped on the black side component)
________________________________________
Technical Specifications & Ratings
• Input Capacity: 8 POINTS
• Signal Ranges: * Voltage: 1-5V, 0-5V, 0-10V, -10 to +10V
o Current: 4-20mA

________________________________________

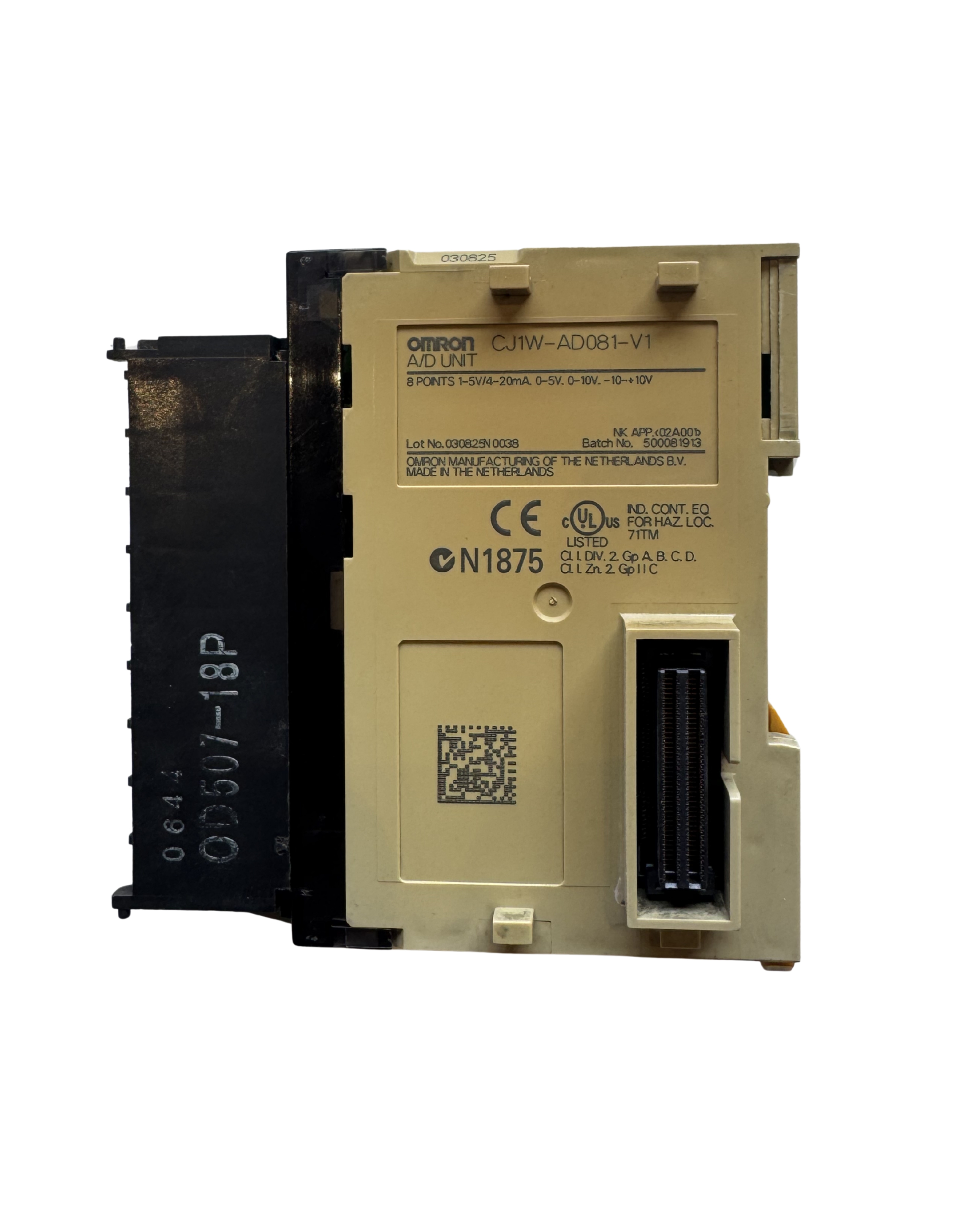

Certifications & Compliance
• CE Mark: Present
• UL Listing: cULus LISTED (IND. CONT. EQ. FOR HAZ. LOC. 71TM)
• Hazardous Location Ratings:
o Cl. I, DIV. 2, Gp A, B, C, D
o Cl. I, Zn. 2, Gp IIC
o (Note: Temperature code is not explicitly visible on this specific label area, though usually standard for this series)
• Regulatory Compliance Mark: N1875
• Other Markings: NK APP.
• Data Matrix: 2D code present on the lower-left of the beige housing.
