OMRON CJ1W-DA041 (Refurbished & NOT TESTED)

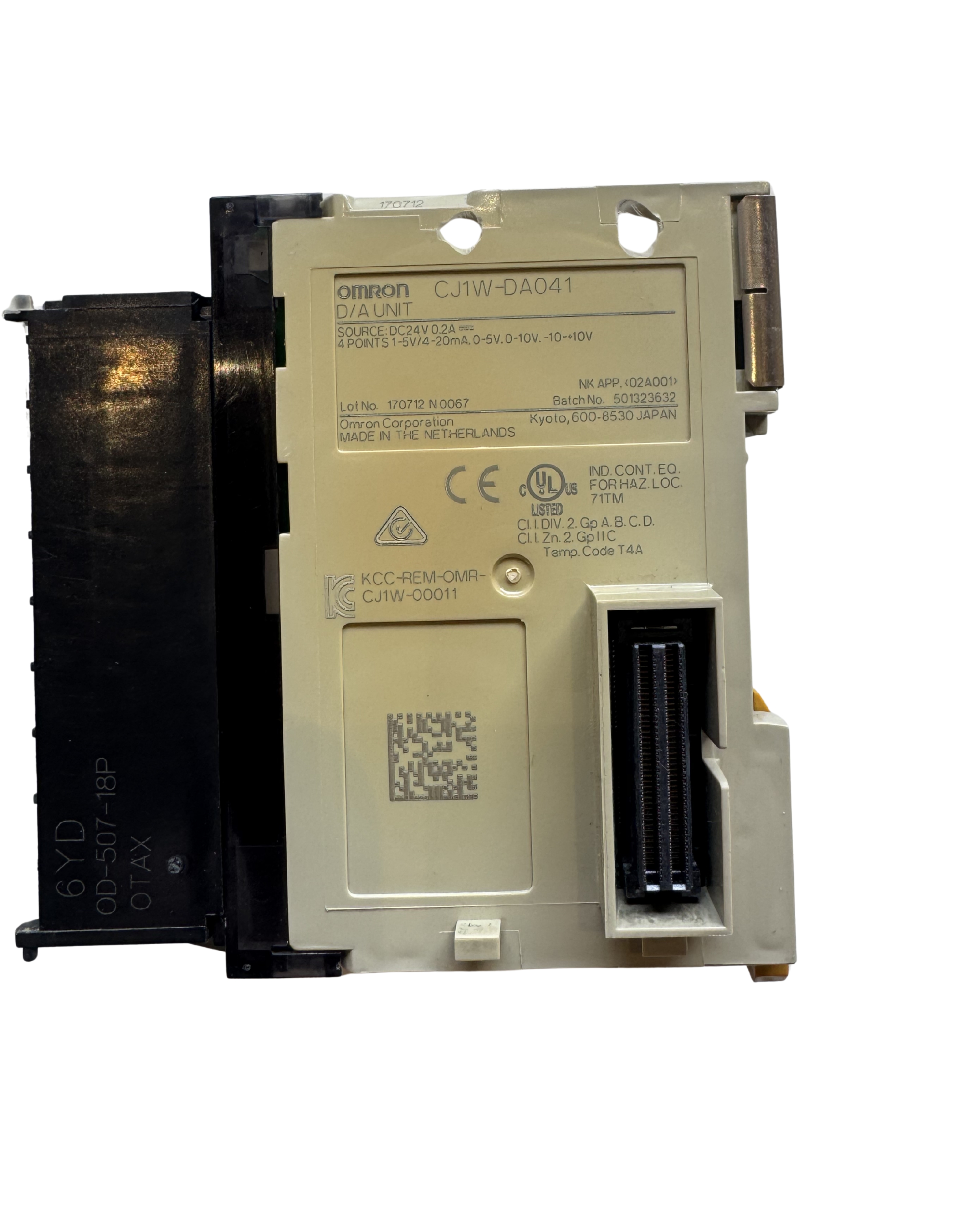

Core Product Identification
• Product Name: D/A UNIT
• Brand/Manufacturer: OMRON (Omron Corporation)
• Model Number: CJ1W-DA041
• Part Number: 6YD OD-507-18P OTAX (printed on the black side component)
________________________________________
Technical Specifications & Ratings
• Power Source: DC24V, 0.2A
• Output Capacity: 4 POINTS
• Signal Ranges: * Voltage: 1-5V, 0-5V, 0-10V, -10 to +10V
o Current: 4-20mA
_______________________________
Certifications & Compliance
• CE Mark: Present
• UL Listing: cULus LISTED (IND. CONT. EQ. FOR HAZ. LOC. 71TM)
• Hazardous Location Ratings:
o Cl. I, DIV. 2, Gp A, B, C, D
o Cl. I, Zn. 2, Gp IIC
o Temp. Code T4A
• Regulatory Compliance Mark (RCM): Present (triangle with tick)
• Korea Certification: KCC-REM-OMR-CJ1W-00011
• Other Markings: NK APP.
• Data Matrix: 2D code present on the lower-left of the beige housing.
