OMRON CJ2M-MD211 (Refurbished & NOT TESTED)

Core Product Identification

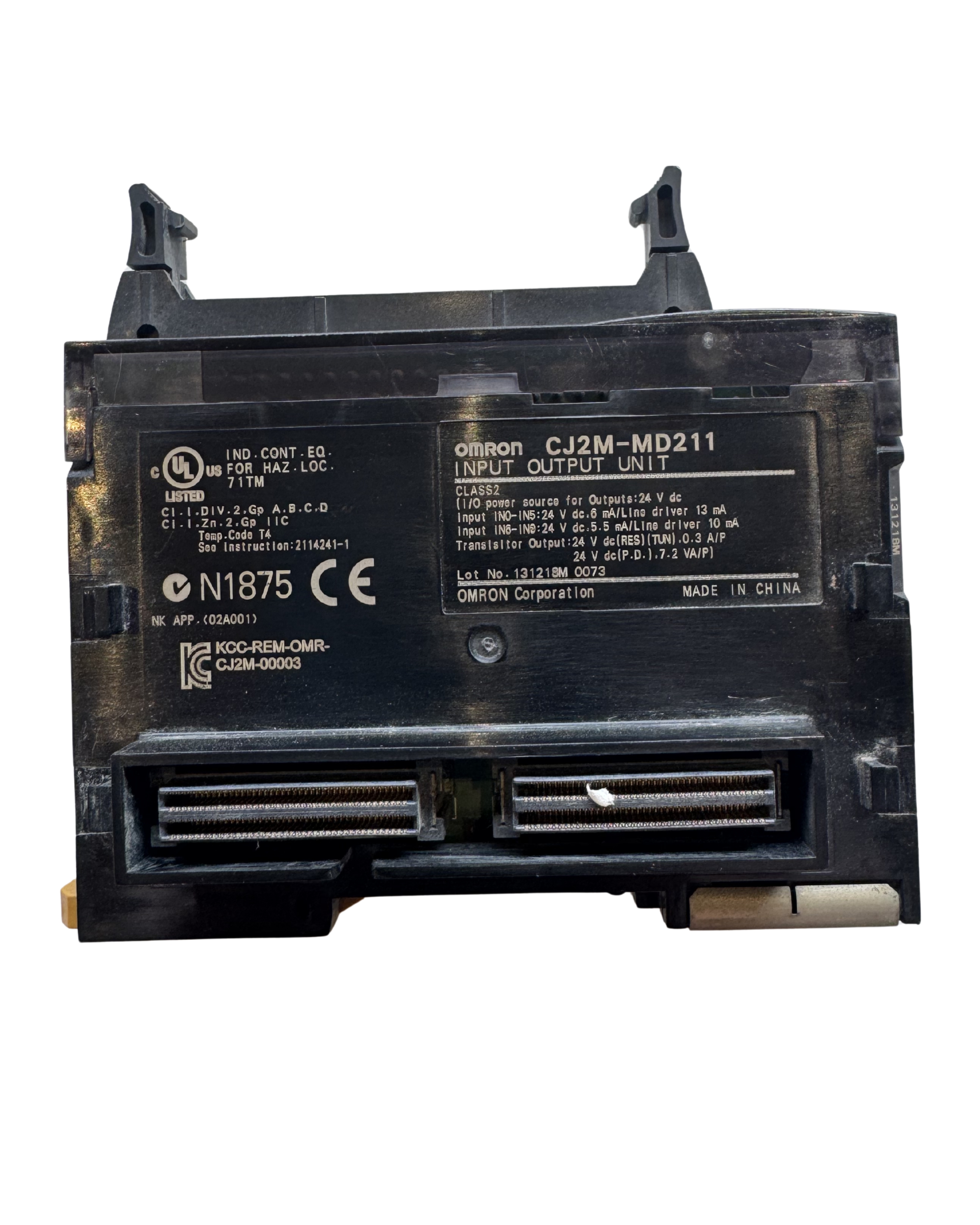

• Product Name: INPUT OUTPUT UNIT
• Brand/Manufacturer: OMRON (Omron Corporation)
• Model Number: CJ2M-MD211
• Part Number: Not explicitly listed (Instruction sheet reference: 2114241-1)
________________________________________
Technical Specifications & Ratings
• Power Class: CLASS 2
• I/O Power Source for Outputs: 24 V dc
• Input Ratings:
o IN0 - IN5: 24 V dc, 6 mA / Line driver 13 mA
o IN6 - IN9: 24 V dc, 5.5 mA / Line driver 10 mA
• Output Ratings (Transistor):
o 24 V dc (RES) (TUN), 0.3 A/P
o 24 V dc (P.D.), 7.2 VA/P

________________________________________
Certifications & Compliance
• CE Mark: Present
• UL Listing: cULus LISTED (IND. CONT. EQ. FOR HAZ. LOC. 71TM)
• Hazardous Location Ratings:
o Cl. I, DIV. 2, Gp A, B, C, D
o Cl. I, Zn. 2, Gp IIC
o Temp. Code T4
• Regulatory Compliance Mark: N1875
• Korea Certification: KCC-REM-OMR-CJ2M-00003
• Other Markings: NK APP.
