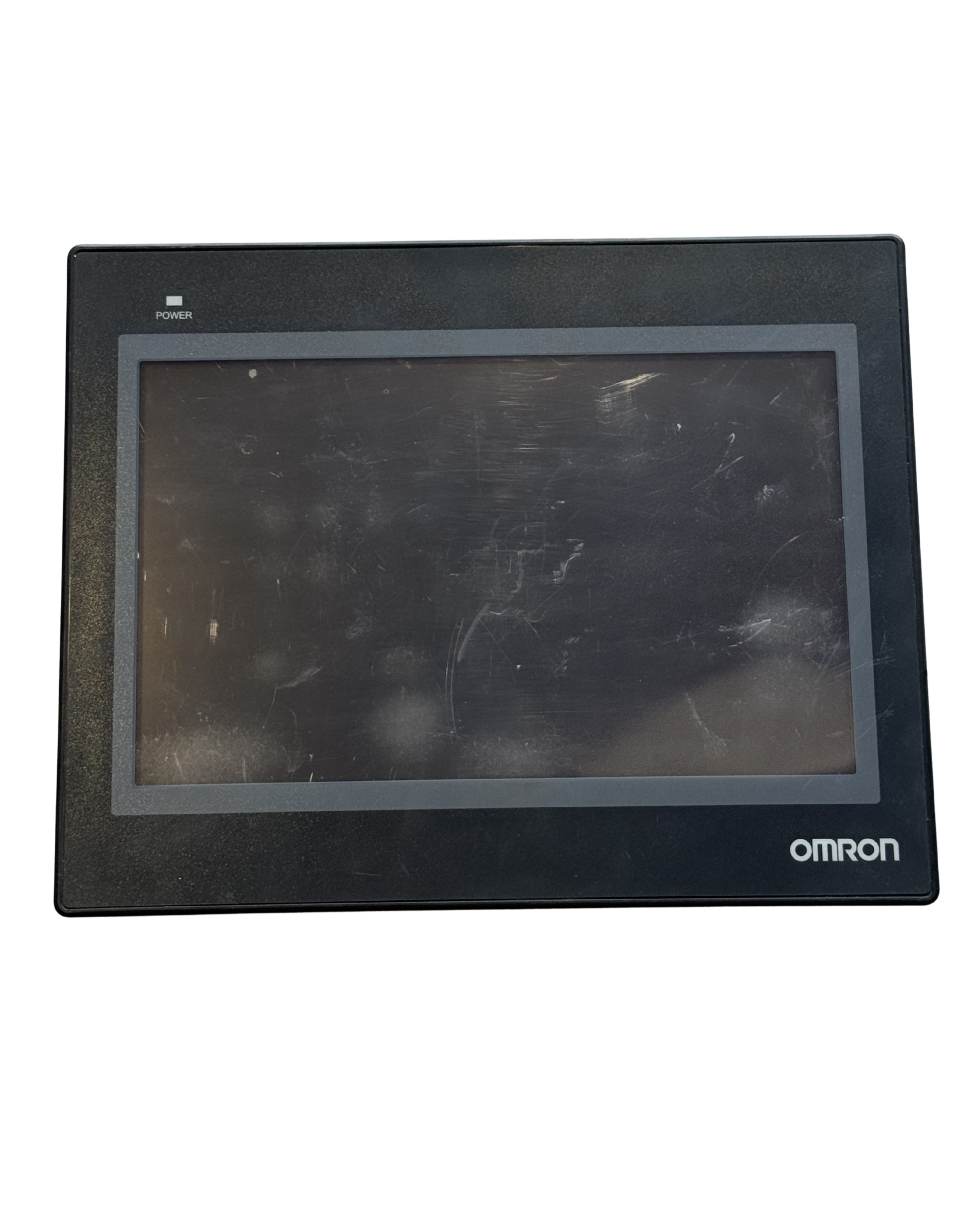

OMRON NB10W-TW01B (Refurbished & Tested)

Core Product Identification
• Product Name: INTERACTIVE DISPLAY
• Brand/Manufacturer: OMRON (OMRON Corporation)
• Model Number: NB10W-TW01B
• Part Number: Not explicitly listed on this face.
________________________________________
Technical Specifications & Ratings
• Power Source (Input): 24V DC, 14W (Isolated Source)
• COM1 Output Power: 5V DC, 250mA
• Version: Ver. 1.1
• MAC Address (White Sticker): 00000AC75200
• Lot No.: 24X20M
• Manufacturing Information: MADE IN CHINA (Kyoto, 600-8530 JAPAN)

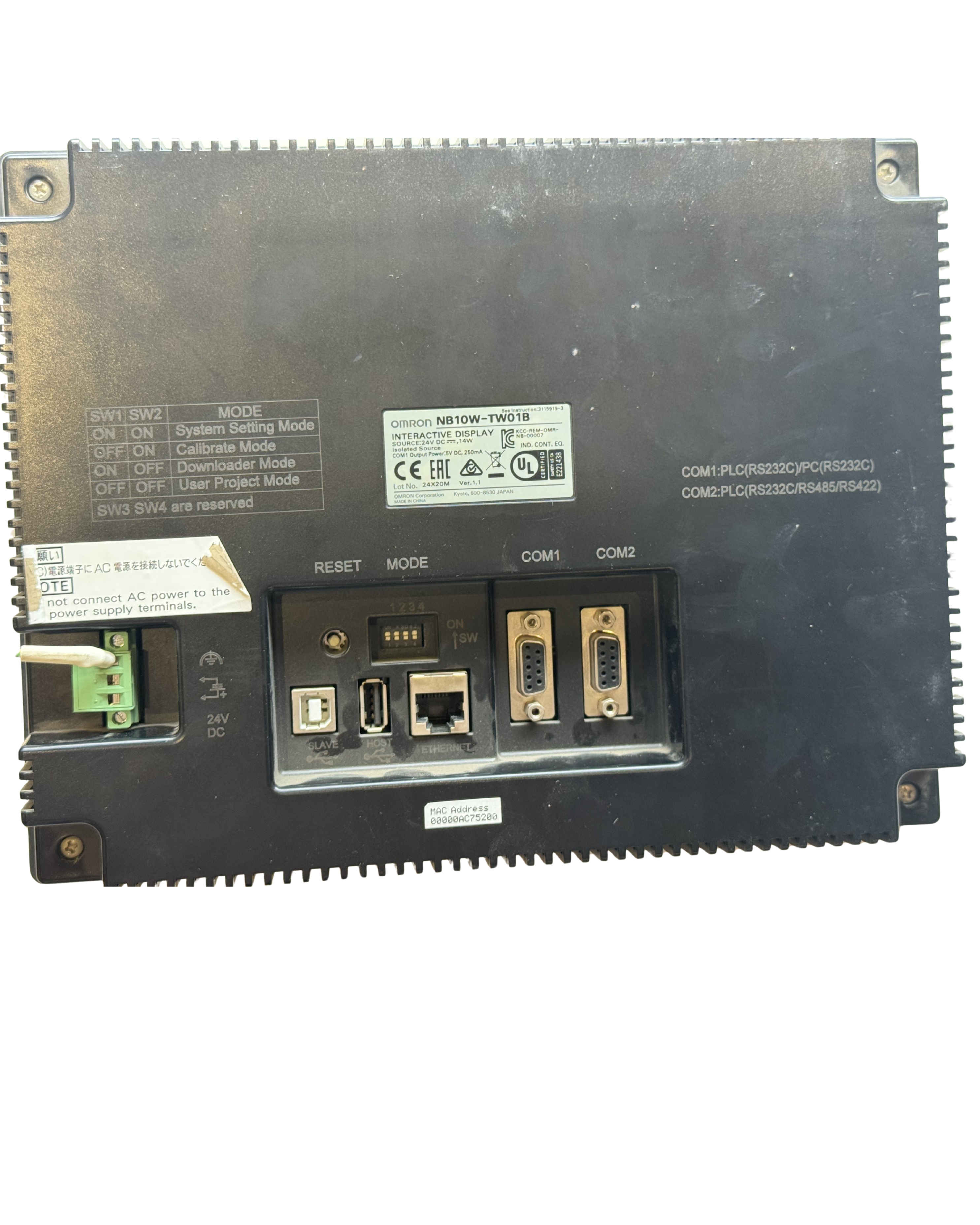

• Communication Ports: * ETHERNET
o USB HOST & USB SLAVE
o COM1: PLC(RS232C)/PC(RS232C)
o COM2: PLC(RS232C/RS485/RS422)
• Important Warning: "NOTE: do not connect AC power to the power supply terminals." (Sticker partially torn).
• DIP Switch Settings (SW1-SW4): Printed table detailing System Setting, Calibrate, Downloader, and User Project modes.
________________________________________
Certifications & Compliance
• CE Mark: Present
• EAC Mark: Present (Eurasian Conformity)
• UL Certification: UL CERTIFIED (SAFETY US-CA E221438, IND. CONT. EQ.)
• Regulatory Compliance Mark (RCM): Present (triangle with tick)
• Korea Certification: KCC-REM-OMR-NB-00007
• Instruction Reference: 3115819-3
