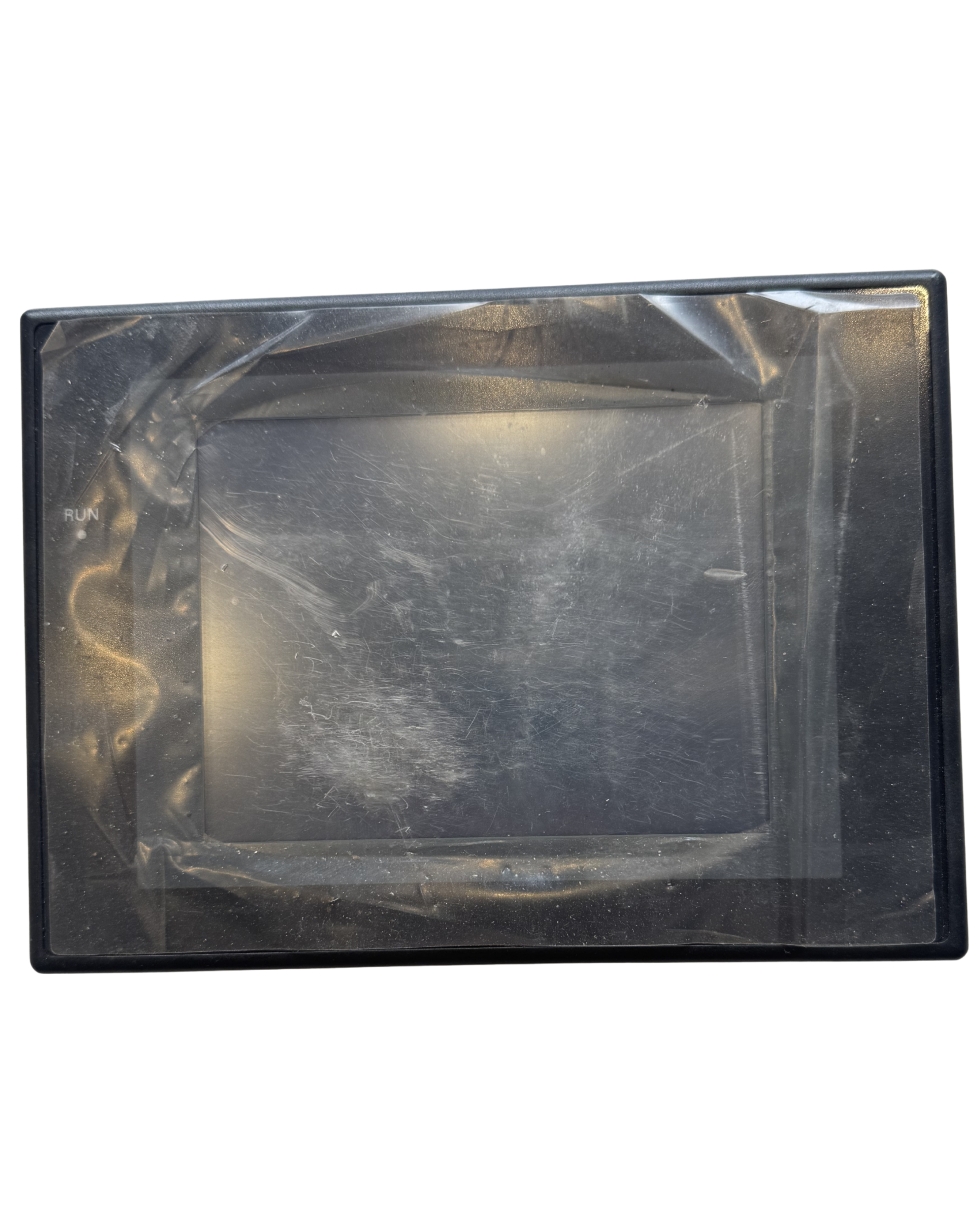

OMRON NS5-SQ11B-V2 (UNUSED)

Core Product Identification
• Product Name: INTERACTIVE DISPLAY (HMI)
• Brand/Manufacturer: OMRON (OMRON Corporation)
• Model Number: NS5-SQ11B-V2
• Part Number: Not explicitly listed on this face.
________________________________________
Technical Specifications & Ratings

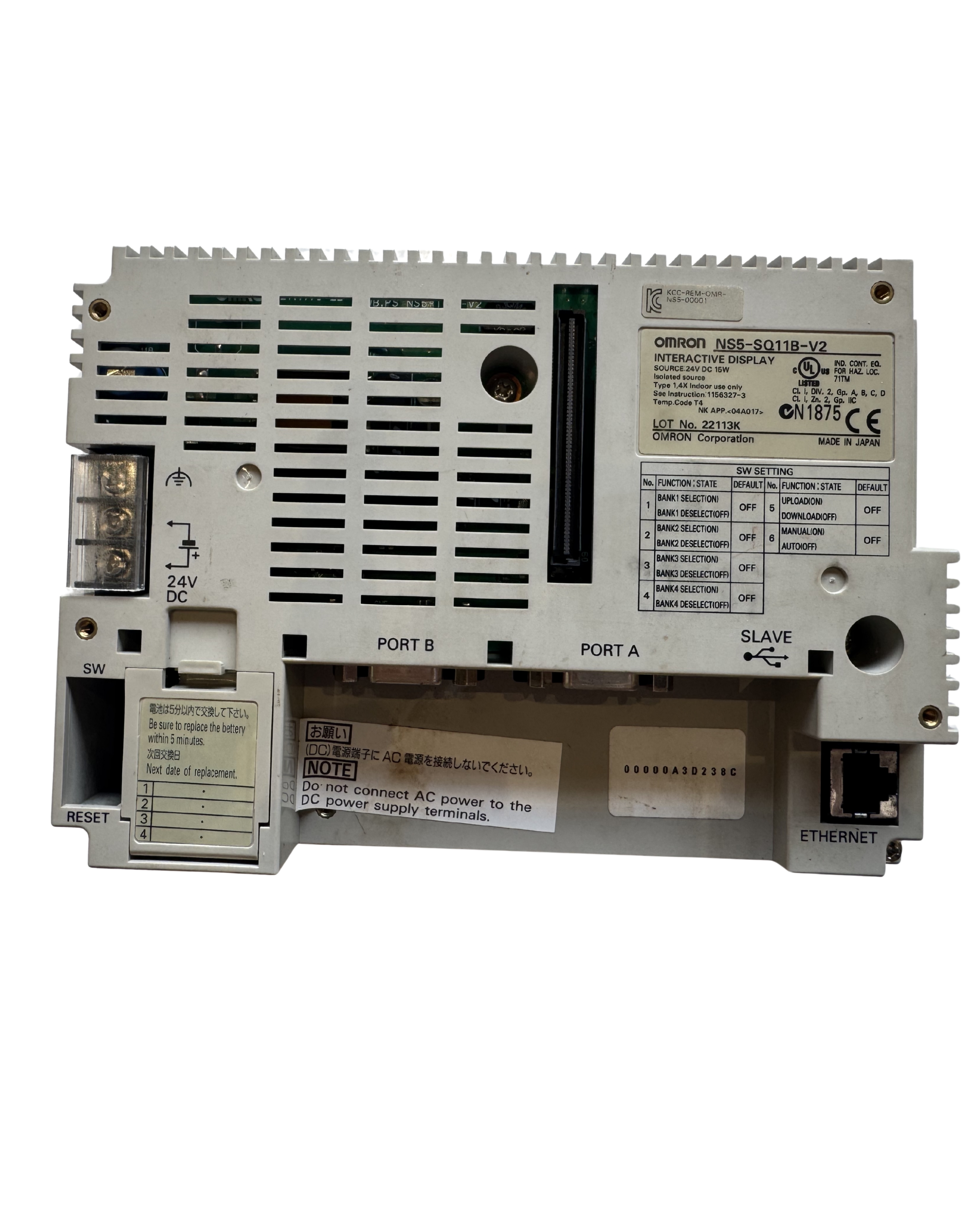

• Power Source (Input): 24V DC, 15W (Isolated source)
• MAC Address (White Sticker): 00000A3D238C

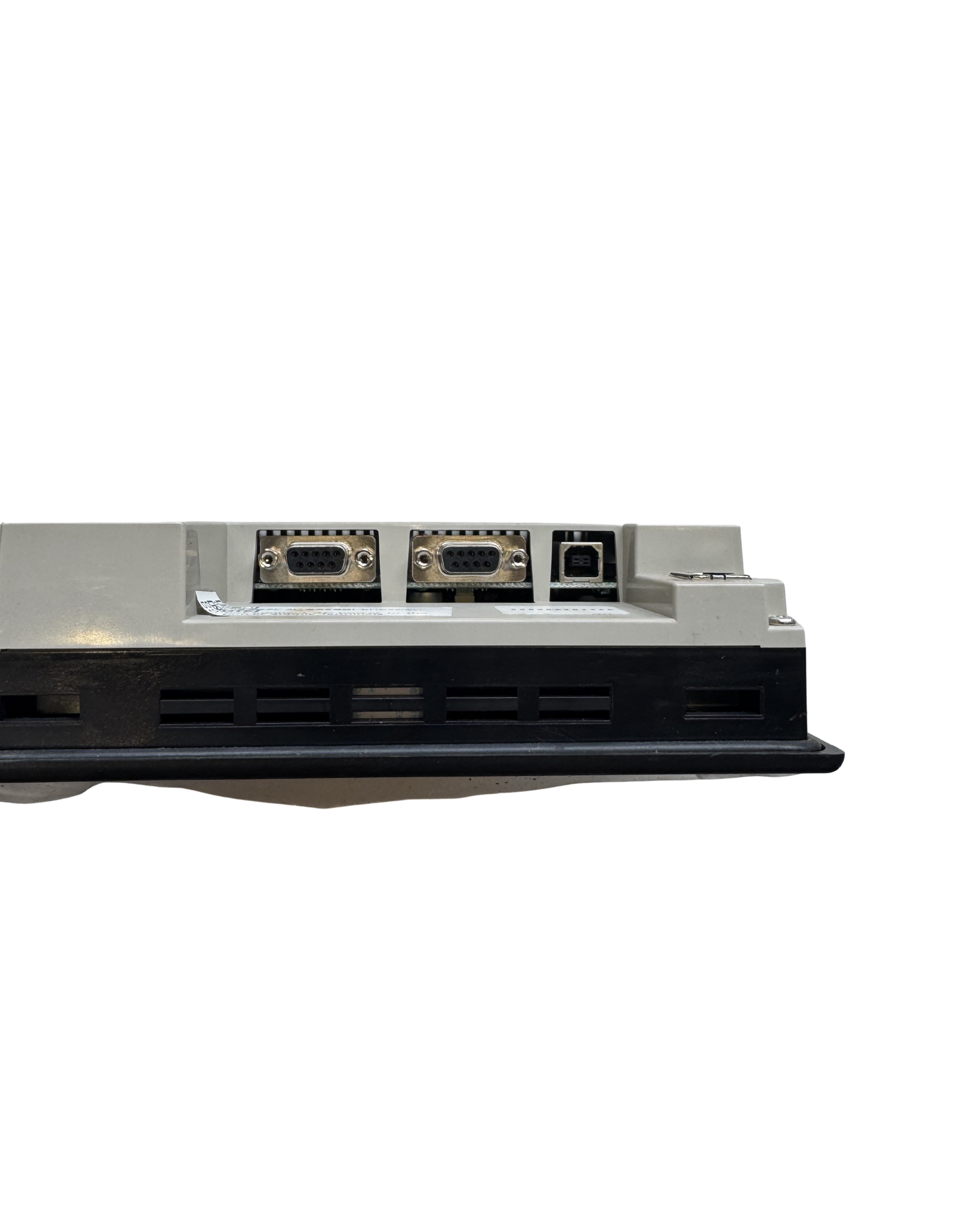

• Communication Ports Visible: ETHERNET, USB SLAVE, PORT A (Serial), PORT B (Serial)
• Important Warning: "NOTE: Do not connect AC power to the DC power supply terminals."
________________________________________
Certifications & Compliance
• CE Mark: Present
• UL Listing: cULus LISTED (IND. CONT. EQ. FOR HAZ. LOC. 71TM)
• Hazardous Location Ratings:
o Cl. I, Div. 2, Gp A, B, C, D
o Cl. I, Zn. 2, Gp IIC
o Temp. Code T4
• Regulatory Compliance Mark (RCM): N1875
• Korea Certification: KCC-REM-OMR-NS5-00001
• Other Markings: NK APP.
• Type Rating: Type 1, 4X indoor use only
